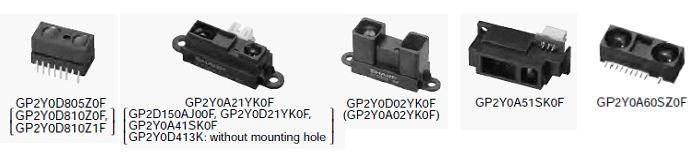

 DMS (Distance Measuring Sensors) 距离量测传感器 |
| |
 |
| |
 Digital output |
(Ta = 25°C) |
|
Model No. |
Detected
distance
(cm) |
Features |
Absolute
maximum
ratings |
Electro-optical characteristics*1
|
Vcc
(V) |
Topr
(°C) |
VOH
(V)
MIN. |
VOL
(V)
MAX. |
Dissipation current |
Operating
(mA) |
Standby
(μA) |
|
GP2Y0D805Z0F |
5 |
Light detector,
infrared LED and signal
processing circuit,
short distance measuring
type,
battery drive compatible
(operating
power supply: 2.7 to 6.2 V) |
–0.3
to +7 |
–10
to +60 |
Vcc
–0.6 |
0.60 |
MAX. 6.5 |
MAX. 8 |
|
GP2Y0D810Z0F |
10 |
Light detector,
infrared LED and signal
processing circuit,
short
distance measuring type,
battery drive
compatible
(operating power supply: 2.7 to 6.3
V) |
–0.3
to +7 |
–10
to +60 |
Vcc
–0.6 |
0.60 |
MAX. 6.5 |
MAX. 8 |
|
GP2Y0D815Z0F |
15 |
Light detector,
infrared LED and signal
processing circuit,
short distance measuring
type,
battery drive compatible
(operating
power supply: 2.7 to 6.4 V) |
–0.3
to +7 |
–10
to +60 |
Vcc
–0.6 |
0.60 |
MAX. 6.5 |
MAX. 8 |
|
GP2Y0D413K0F |
13 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
digital voltage output according to the measured
distance |
–0.3
to +7 |
–10
to +60 |
Vcc
–0.3 |
0.60 |
- |
- |
|
GP2Y0D21YK0F |
24 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
digital voltage output according to the measured
distance |
–0.3
to +7 |
–10
to +60 |
Vcc
–0.3 |
0.60 |
MAX. 40 |
- |
|
GP2Y0D02YK0F |
80 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
digital voltage output according to the measured
distance |
–0.3
to +7 |
–10
to +60 |
Vcc
–0.3 |
0.60 |
MAX. 50 |
- |
|
*1 Vcc = 5 V |
|
|
|
|
|
|
|
|
|
*2 PSD: Position Sensitive Detector |
|
|
|
|
|
|
|
| |
|
Analog output
|
(Ta = 25°C) |
|
Model No. |
Distance measuring range
(cm) |
Features |
Absolute
maximum
ratings |
Electro-optical characteristics*1
|
Vcc
(V) |
Topr
(°C) |
VOH
(V )MIN. |
VOL
(V )MAX. |
Dissipation
current |
Operating
(mA) |
GP2Y0AF15
series |
1.5~15 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
short measuring cycle (16.5 ms), compact,
lineup of various connector shapes |
–0.3
to +7 |
–10
to +60 |
VO (TYP.) = 0.4 V
(at L = 15 cm),
∆VO
(TYP.) = 2.3 V
(at L = 15 cm → 1.5 cm) |
TYP. 17 |
|
GP2Y0A51SK0F |
2~15 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
short measuring cycle (16.5 ms),
|
–0.3
to +7 |
–10
to +60 |
VO (TYP.) = 0.4 V
(at L = 15 cm),
∆VO
(TYP.) = 2.3 V
(at L = 15 cm → 2 cm) |
TYP. 12 |
GP2Y0AF30
series |
4~30 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
short measuring cycle (16.5 ms), compact,
lineup of
various connector shapes |
–0.3
to +7 |
–10
to +60 |
VO (TYP.) = 0.4 V
(at L = 30 cm),
∆VO
(TYP.) = 2.3 V
(at L = 30 cm → 4 cm) |
TYP. 17 |
|
GP2Y0A41SK0F |
4~30 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
short measuring cycle (16.5 ms),
|
–0.3
to +7 |
–10
to +60 |
VO (TYP.) = 0.4 V
(at L = 30 cm),
∆VO
(TYP.) = 2.25 V
(at L = 30 cm → 4 cm) |
MAX. 40 |
|
GP2Y0A21YK0F |
10~80 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
linear voltage output
|
–0.3
to +7 |
–10
to +60 |
VO (TYP.) = 0.4 V
(at L = 80 cm),
∆VO
(TYP.) = 1.9 V
(at L = 80 cm → 10 cm) |
MAX. 50 |
|
GP2Y0A02YK0F |
20~150 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
long distance measuring type
(No external
control signal required) |
–0.3
to +7 |
–10
to +60 |
VO (TYP.) = 0.4 V
(at L = 150 cm),
∆VO
(TYP.) = 2.05 V
(at L = 150 cm → 20 cm) |
MAX. 50 |
|
GP2Y0A710K0F |
100~550 |
Distance measuring sensor united with PSD*2,
infrared LED and signal processing circuit,
long distance measuring type
(No external
control signal required) |
–0.3
to +7 |
–10
to +60 |
VO (TYP.) = 2.5 V
(at L = 100 cm),
∆VO
(TYP.) = 0.7 V
(at L = 100 cm → 200 cm) |
TYP. 30 |
|
*1 Vcc = 5 V |
|
*2 PSD: Position Sensitive Detector |
|
*3 When Vcc = 3 V: Vo (TYP.) = 0.35 V (at L = 150 cm); ∆Vo (TYP.) = 1.6 V (at L = 150 cm → 20 cm) |
|
http://www.sharp-world.com/products/device/lineup/selection/opto/haca/diagram.html |
|
|
|
|
Distance Measuring Sensors (2) CMOS type |
Analog Output (Including I2C output)
|
|
Model No. |
Distance measuring range
(cm) |
Features |
Absolute
maximum
ratings |
Electro-optical characteristics*1 |
Vcc
(V) |
Topr
(°C) |
VOH
(V )
MIN. |
VOL
(V )
MAX. |
Dissipation
current |
Operating
(mA) |
|
GP2Y0E02A |
4~50 |
Infrared LED and CMOS image sensor with
built-in signal processing circuit,
compact size
(18.9 × 8 × 5.2 mm),
high-precision measurement, analog output |
–0.3
to +3.6 |
–10
to +60 |
VOUT (A)1=0.3to0.8V (at L = 50 cm), VOUT
(A)3=2.1to2.3V (at L = 4 cm) |
MAX. 36 |
|
GP2Y0E02B |
4~50 |
Infrared LED and CMOS image sensor with
built-in signal processing circuit,
compact size
(18.9 × 8 × 5.2 mm),
high-precision measurement, analog output |
–0.3
to +3.6 |
–10
to +60 |
D1=45to50cm (at L = 50 cm), D3=3to5cm (at
L = 4 cm) |
MAX. 36 |
|
GP2Y0E03 |
4~50 |
Infrared LED and CMOS image sensor with
built-in signal processing circuit,
compact size
(16.7 × 11 × 5.2 mm),
high-precision measurement, analog / I2C
output both compatible |
–0.3
to +3.6 |
–10
to +60 |
VOUT (A)1=0.3to0.8V, D1=45to50cm
(at L
= 50 cm), VOUT (A)3=2.1to2.3V, D3=3to5cm
(at L = 4 cm) |
MAX. 36 |
|
| |
|
|
|
|
