　　LCD Displays

STN LCD 驅動芯片 / STN LCD 控制芯片
STN LCD Controller (含中文字庫)
NO.
Panel Resolution
Operation
Voltage
Mode
ADC/DAC
Package
MCU Interface

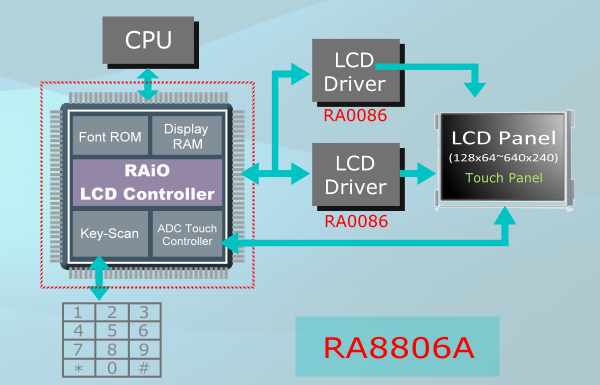

RA8806
640x240
320X480
2.7~5.5
4 Gray Scale
Two Layer
Graphic/Text
10 / 8 bit
Die,LQFP100,
TQFP80
4/8-bit
6800,8080 series
STN LCD Driver
NO.
Common
Segment
Logic Voltage
LCD Driver Voltage
Duty
Package
RA0086A
80 / 0
0 / 80
2.7~5.5
6~30
1/64~1/256
LQFP100
Bare die

1
STN LCD Controller
NO.
Panel Resolution
Operation
Voltage
Mode
Compatible
Package
MCU Interface

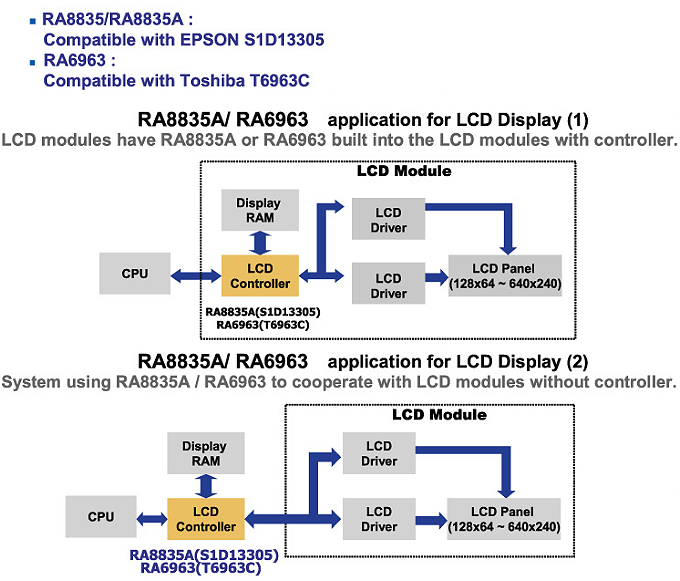

RA6963
External Display
RAM 64KB max
3.0~5.5
Mono
Graphic/Text
Toshiba
T6963C

LQFP67
n
8-bit
8080 series
RA8835
RA8835A
External Display RAM
Up to 640x256 pixel
LCD panel dispaly

2.7~5.5
1
Mono
Graphic/Text
Epson
S1D13305
QFP60 / TQFP60
8-bit
6800,8080 series

1

1
