　　LCD Displays

TFT LCD 控制芯片

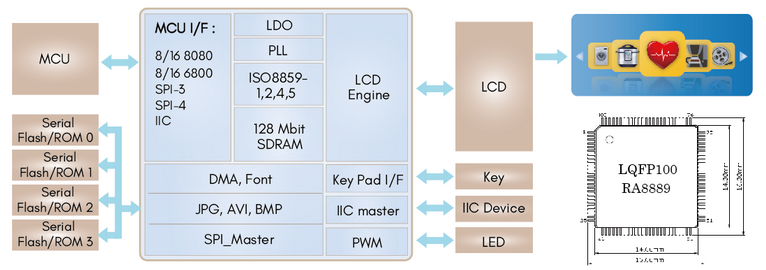

　 RA8889 應用

TFT LCD Controller
NO.
Resolution
(Max)
Color
MCU I/F
Panal
Media Decoder
2D Engine
Alpha blending
PIP
RA8889
1366x768
16.7M

8/16bit parallel 3/4 Wire SPI ,IIC

CMOS/TTL
Motion JPEG
Yes

Yes
Yes

1

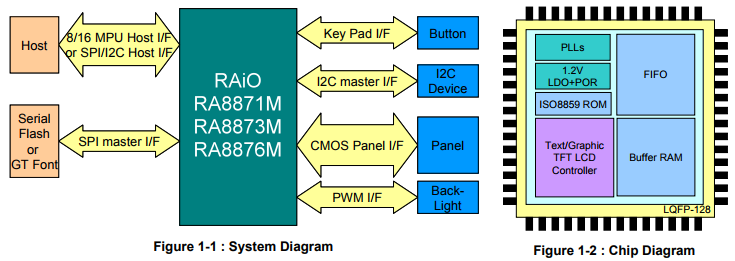

　 RA8871M/73M/76M 應用

TFT LCD Controller
NO.
Resolution
(Max)
Color
MCU I/F
Panal
2D Engine
Alpha blending
PIP
RA8871M
480x320
320x480
16.7M

8/16bit parallel
3/4 Wire SPI ,IIC

CMOS/TTL
Yes

Yes
Yes
RA8873M
800x480
480x800
65K

8/16bit parallel
3/4 Wire SPI ,IIC

CMOS/TTL
Yes

Yes
Yes
RA8876M
1366x768
16.7M

8/16bit parallel
3/4 Wire SPI ,IIC

CMOS/TTL
Yes

Yes
Yes

1

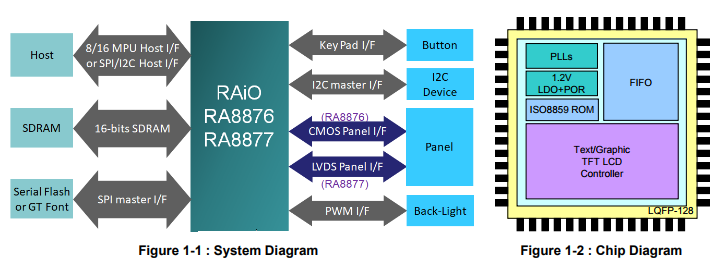

　 RA8876/77 應用

TFT LCD Controller
NO.
Resolution
(Max)
Color
MCU I/F
Panal
Ext .SDRAM
2D Engine
Alpha blending
PIP
RA8876
1366x768
16.7M

8/16bit parallel 3/4 Wire SPI ,IIC

CMOS/TTL
16Mb-512Mb
Yes

Yes
Yes
RA8877
1366x768
16.7M

8/16bit parallel 3/4 Wire SPI ,IIC

LVDS
16Mb-512Mb
Yes

Yes
Yes

1

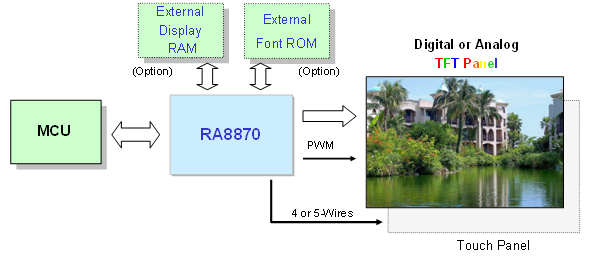

　 RA8870 應用

TFT LCD Controller
NO.
Panel Resolution
(Max)
Color
SPI
I/F
Panal
Touch Controller
2D Engine
+ BTE
Ext Font
ROM I/F
DMA
RA8870
640X480
256/4K/65K

-

Digital/
Analog

4/5 wires
(R-Type)
Yes

Yes
(Parallel)

-

1

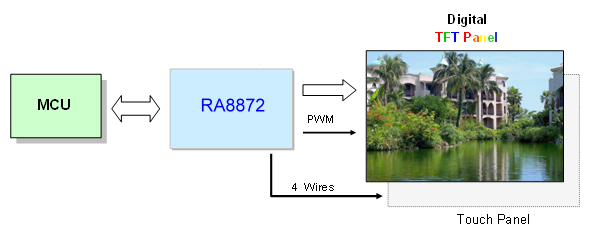

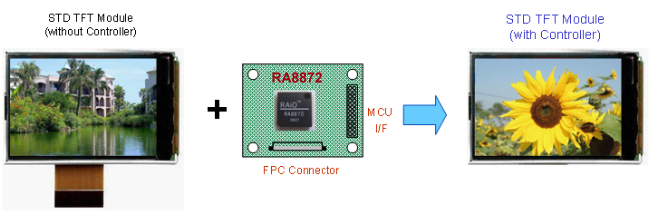

　 RA8872 應用

TFT LCD Controller
NO.
Panel Resolution
(Max)
Color
SPI
I/F
Panal
Touch Controller
2D Engine
+ BTE
Ext Font
ROM I/F
DMA
RA8872
320X240
256/4K/65K

-

Digital
4 wires
(R-Type)
Yes

-
-

1

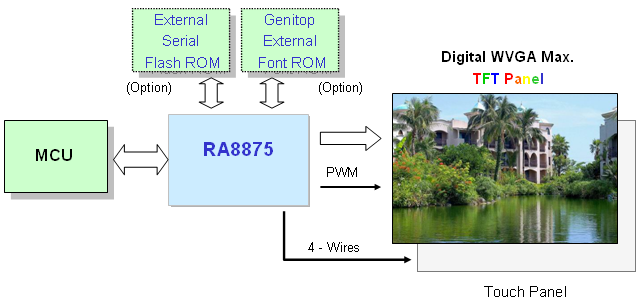

　 RA8875 應用

TFT LCD Controller
NO.
Panel Resolution
(Max)
Color
SPI
I/F
Panal
Touch Controller
2D Engine
+ BTE
Ext Font
ROM I/F
DMA
RA8875
800X480
256/65K

3/4

Digital
4 wires
(R-Type)
Yes

Yes
(Serial)
Yes
